首页 > 产品展示 > Electric Parts > Capillary thermostat > Type A503 Stainless Steel Capillary

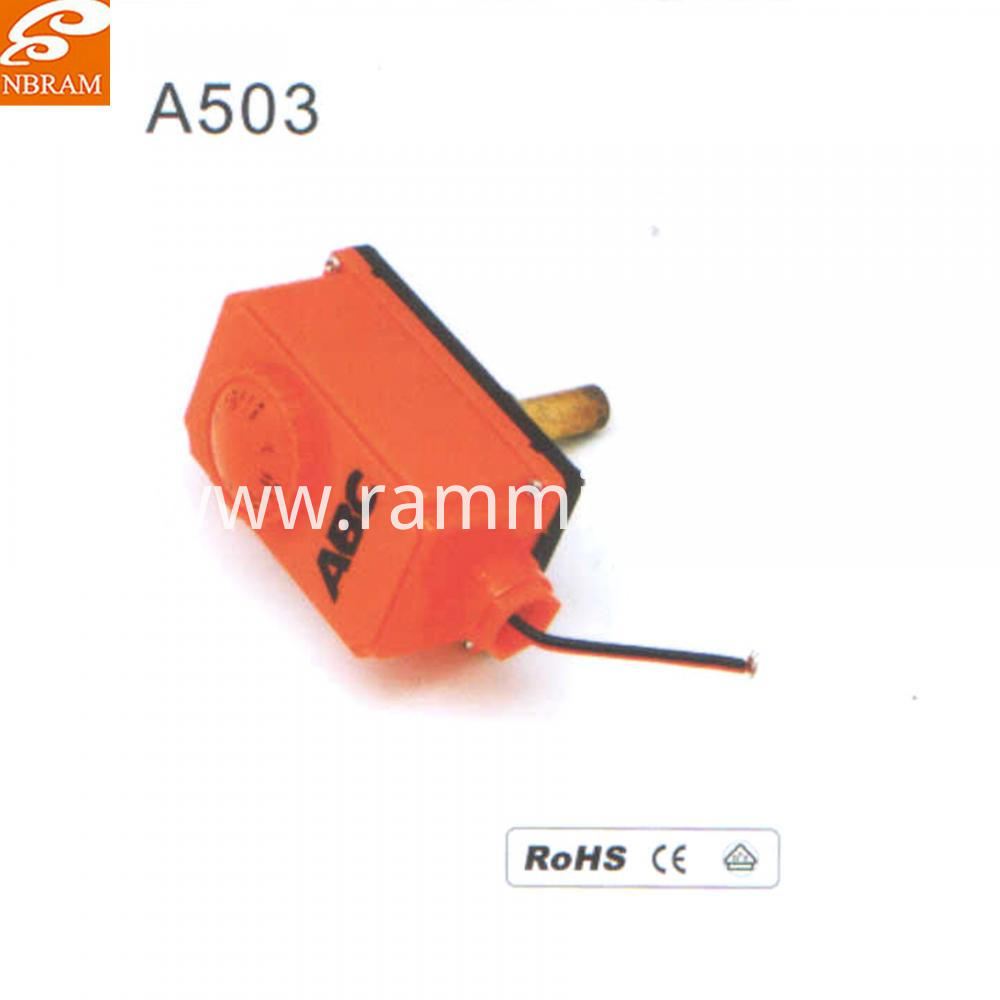

Type A503 Stainless Steel Capillary

型号:
711
品牌:
NBRAM, Mitsubishi
材料:
不锈钢
包装:
Box In strong cartons,on exporting pallet
生产力:
100000
源产地:
中国
Share:
Chat Now
  • 产品描述
Overview
产品属性

型号711

品牌NBRAM, Mitsubishi

材料不锈钢

供应能力和附加信息

包装Box In strong cartons,on exporting pallet

生产力100000

源产地中国

Capillary thermostats are widely used in electric appliances like electric water heater, electric heater, electric boiler, washing machine, electric oven, deep fryer,air fryer

Parameter:

1)Designed temperature range: -35°C ~ 350 °C

2)Capillary Length: 300-3000mm

3)On-off temperature difference: 3°C- 10°C

4)Fitting size:28±0.25mm

5)Rated at 16A/250V 50/60Hz

6)Main body temperature: T90 / T150

7)Electric strength: 800v/s between two pin.

8)Insulation resistance≥100MΩ

9)Control type: mechanical temperature controller

10)Contact resistance:≤50MΩ

11)Operating life: ≥ 100,000times

12)Certification: CE and CQC

13)Used for electric water heater, washer, electric oven, fried pan and refrigeration industryetc.

14)Manufactured on customers' request

15)Warmlly welcome to contact us at86-15957748531



Attentions

1, The whole bulb is supported closely aligns controlled temperature surface while thermostat installation, to achieve accurate temperature control purposes.

2, The installation must not be a bulb pressure deformation, so as not to affect its performance.

3, Don't make electricity gas and electricity material in a thermostat or contaminated thermostat surface to avoid affect the electrical insulating performance.

4, Switch box is that the electrical appliances ceramic part to handle gently and avoid damage

5, The bending radius of capillary is not less than 5mm.

A503
