首页 > 产品展示 > Insulation Products > Ceramic Parts > Zro2 mgo stabilized zirconia ceramic tube

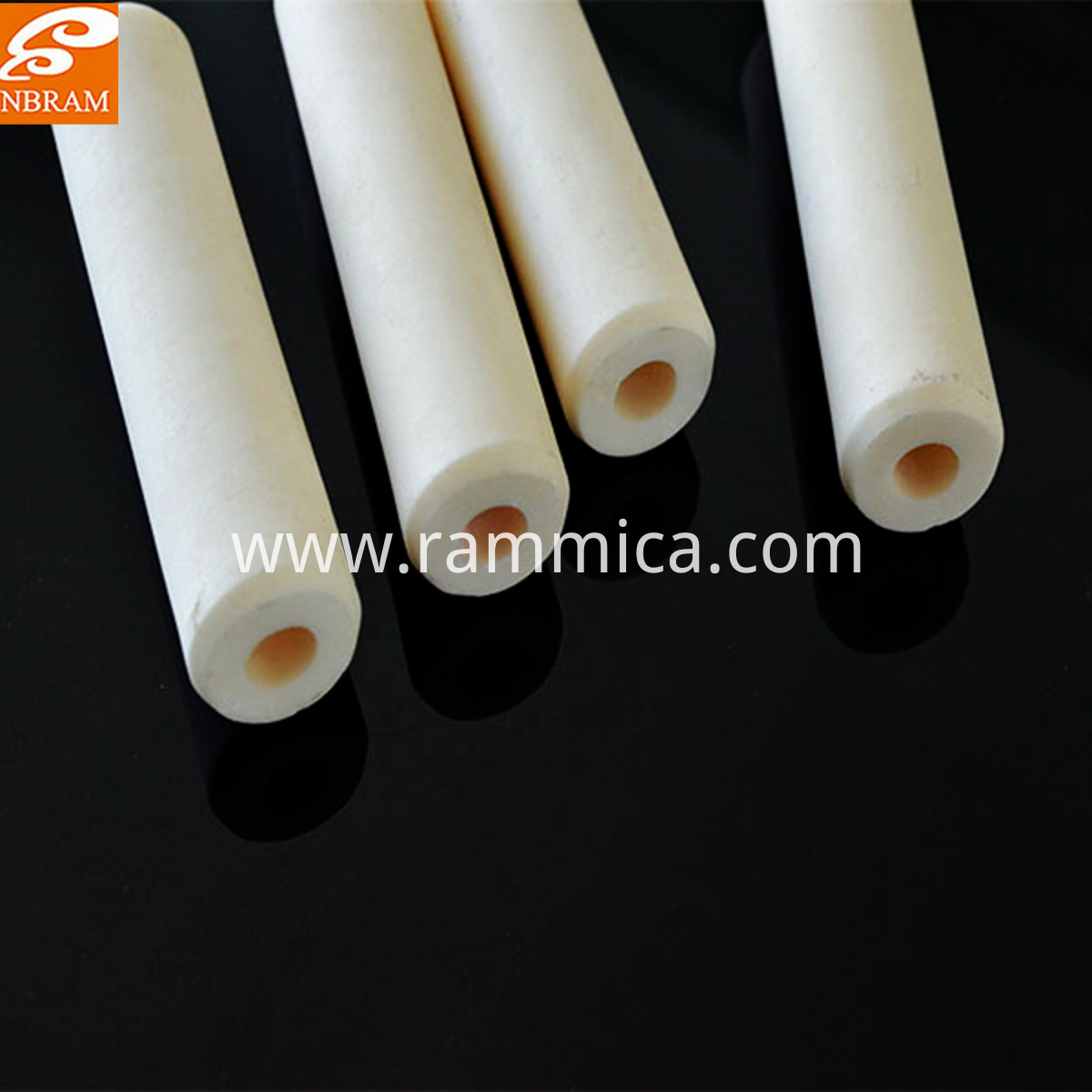

Zro2 mgo stabilized zirconia ceramic tube

型号:
NBR
品牌:
NBRAM, Mitsubishi
材料:
橡胶
包装:
Box In strong cartons,on exporting pallet
生产力:
100000
源产地:
中国
Share:
Chat Now
  • 产品描述
Overview
产品属性

型号NBR

品牌NBRAM, Mitsubishi

材料橡胶

供应能力和附加信息

包装Box In strong cartons,on exporting pallet

生产力100000

源产地中国

Main performance index about ceramic tube:

1. Heat treatment furnace and toughened furnace

2. Inner liner tube and heating tube in electric furnace



Features:

1.Great mechanical strength

2.High softening temperature

3.Good resistance to thermal impact

4.Small thermal expansion coefficient

5.Good chill and abrupt heat properties




Material

Item

unit

Alumina(1)

Alumina(2)

Zirconia




content

%

95

99

99



Density

g/cm3

≥3.6

≥3.8

5.89-6



Water absorption

%

<0.01

<0.01

0



Hardness

HRA

≥82

≥88

6-9



Bending strength

MPA

320

400

1100



Dielectric constant

MHZ

8.5

9.8

12



Dielectric strength

KV/mm

20

25

-



Thermal expansion

X10-6/K

5.0-8.3

5.4-8.3

9.6



Volume Resistivity

Ω.cm20

>10^15

>10^14

>10^12




Maximum Use Temperature

°C

1600

1750

900



Thermal Conductivity ( at R.T. )

W/(m.K)

18-25

30

2.2




Vickers Hardness

Gpa

14

20

12












































1). Excellent insulation ,security , long working life .1. Advantages :

2). Precise grinding and polishing.

3). Excellent heat radiation, small size ,more environmental and energy-efficient .

4). good thermal conductivity
5). large specific heat capacity
6). low pressure drop
7).  good heat-shock resisting ability

8). Working temperature: 600℃-1200℃



2. Application :

1). Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.

2). As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, other resistance-heating environment
3). halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.

4). high-power electrical applicance and all kinds of insulation device.

Ceramic-Rods-ceramic-insulator-and-Industrial-Ceramic







Product Categories : Mica Products > Mica Tube
