首页 > 产品展示 > Mica Products > Mica Tube > Phlogopite Mica Tube for Insulation Application

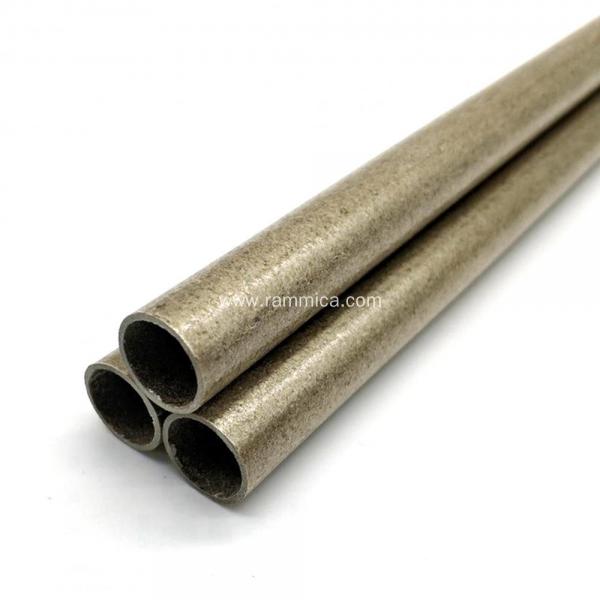

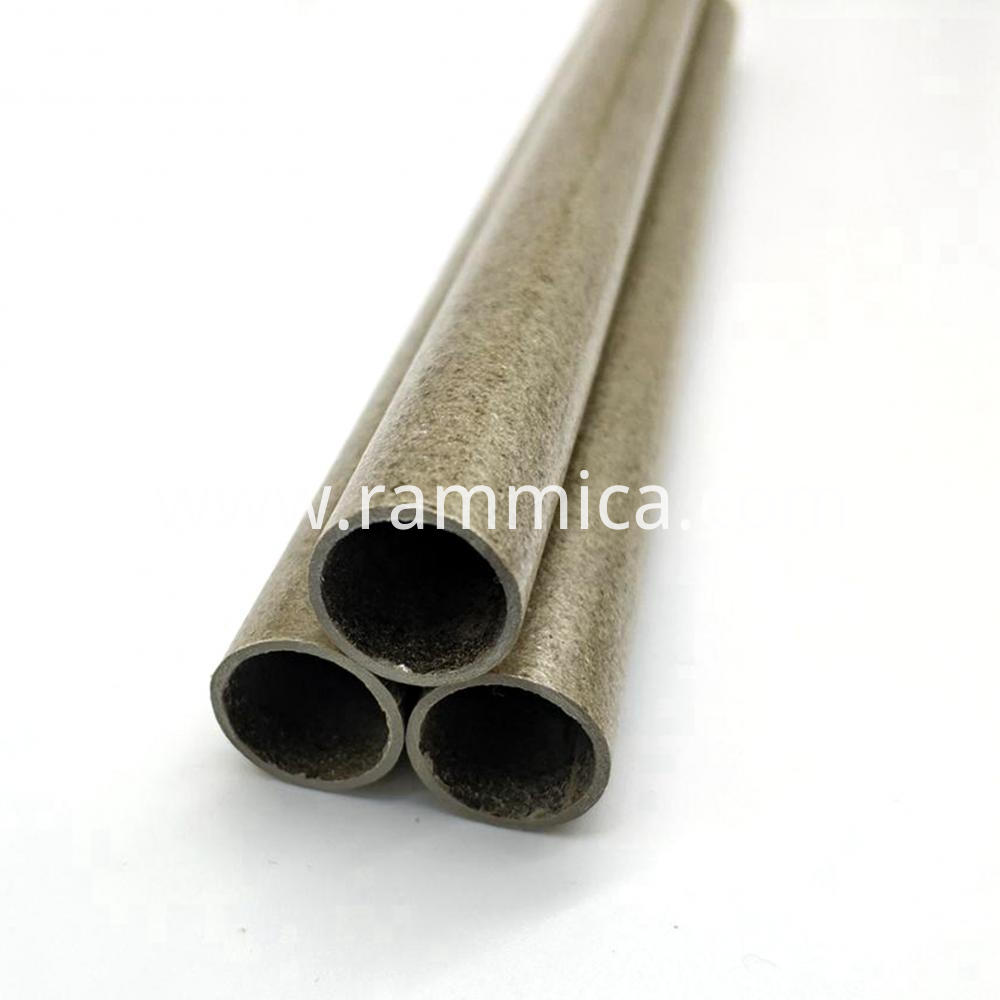

Phlogopite Mica Tube for Insulation Application

型号:
NBR-Tube
品牌:
NBRAM
包装:
50KG/carton, then fumigation pallet or steel pallet
生产力:
100000
源产地:
中国
Share:
Chat Now
  • 产品描述
Overview
产品属性

型号NBR-Tube

品牌NBRAM

供应能力和附加信息

包装50KG/carton, then fumigation pallet or steel pallet

生产力100000

源产地中国

The mica tube is hard pipe insulation material prepared by using mica paper or splitting mica fixed with glue or by using mica paper glued on side of reinforced material, then processed rolling. It has excellent mechanical strength and electrical properties. It is suitable for all kinds of electric motors and electrical appliances electrical smelt furnace etc



MICA UNIT MUSCOVITE MICA PHLOGOPITE MICA TEST
Mica Content % 90 90 IEC371
Bond content % 10 10 IEC371
Density G/M3 2.15 2.15 IEC371
Continuous heat resistance °C 550 750
Intermittent heat resistance °C 800 1000
Flexural strength N/MM2 >200 >150 GB/T5019
Water absorption % <0.5 <0.5 GB/T5019
Dielectric Strength KV/MM >20 >20 IEC243
Anti resistance 23°Cohm.cm >1017 >1017 ICE93
Anti resistance 500°Cohm.cm >1012 >1012 IEC93
Heat loss at500°C% <1 <1 IEC371
  at700°C%   <2 ICE371


Mica Tube 1
NBR-Phlogopite Mica Tube for Insulation Application (NBR-Tube)

Product Categories : Mica Products > Mica Tube
