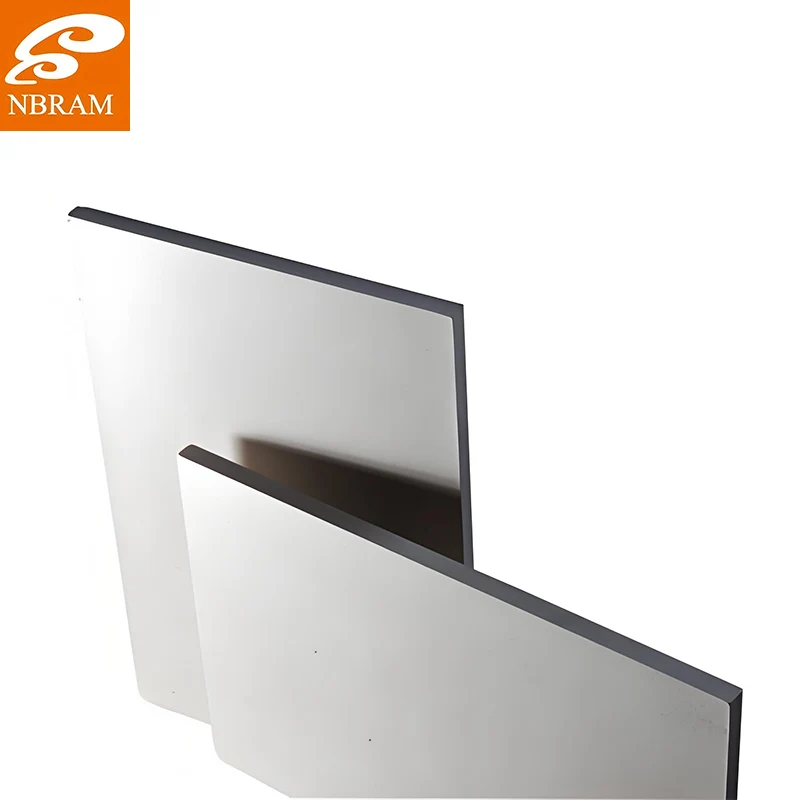

For engineers specifying thermal management solutions, our silicone bonded flexible mica plate solve the eternal challenge of maintaining dielectric strength while accommodating thermal expansion in high-temperature environments. These remarkable materials combine the natural dielectric properties of mica with advanced silicone polymer technology, creating a flexible insulation solution that performs consistently from -60°C to 600°C. We've documented cases where our plates outlasted conventional materials by 3.5 times in transformer applications, particularly where thermal cycling causes rigid materials to fail. The secret lies in our proprietary manufacturing process that allows the mica to flex without compromising its insulating properties. When your design calls for reliable insulation that moves with your components rather than against them, our silicone bonded technology delivers exactly what practicing engineers need.
I recently visited a customer using our plates in electric vehicle battery packs where they're solving two problems simultaneously: providing electrical isolation between cells while allowing for the expansion and contraction that occurs during charging cycles. Their engineers specifically chose our material because it maintains compression set resistance even after repeated thermal cycling - something they weren't getting from other suppliers' materials.
In industrial heating applications, we're seeing innovative uses where Silicone Bonded Flexible Mica Plate serve as both insulators and thermal spreaders. One manufacturer of packaging machinery uses them between heating elements and moving parts, where the flexibility accommodates mechanical vibration while the thermal conductivity prevents hot spots. The maintenance supervisor told me they've reduced downtime by 40% since switching to our material because they're no longer replacing cracked insulation every few months.
Another interesting application emerged in aerospace manufacturing, where technicians are using laser-cut versions of our plates for custom-shaped insulation on wiring harnesses that pass through high-temperature zones. The chief engineer explained that traditional materials either cracked during installation or couldn't handle the temperature extremes encountered during flight. Our material's combination of flexibility and thermal stability solved both problems while reducing installation time because it could be shaped to fit complex geometries without special tools.
Silicone Bonded Flexible Mica Plate standard thickness range spans from tissue-thin 0.15mm to robust 3.0mm plates, with tolerance control that's become the industry benchmark at ±0.01mm. We achieve this consistency through precision calendering equipment that we've specifically modified for handling mica-silicone composites. The dielectric strength maintains 18-22kV/mm even after extended exposure to 600°C environments, a property we verify through destructive testing of random samples from every production run.
The thermal conductivity range of 0.45-0.55W/m•K represents what we've found to be the sweet spot for most applications - sufficient for heat spreading without creating thermal shorts. For the 0.2mm thickness, the minimum bending radius of 1.5mm allows designers to create compact insulation solutions without worrying about material failure. Our tensile strength values range from 40-80MPa depending on thickness, with the higher values achieved through our proprietary orientation process that aligns the mica particles for optimal strength.
We offer standard sheet sizes of 1000mm × 500mm and 1200mm × 1000mm, but our custom cutting service can provide virtually any size or shape needed. All our materials meet UL94 V-0 requirements and comply with ROHS standards, with full documentation available for quality assurance purposes. The compression resistance of 100-150MPa across all variants ensures reliable performance even in high-pressure applications.
What really sets our manufacturing apart is how we treat the silicone resin before it ever meets the mica. We start by aging the resin under controlled conditions until it reaches precisely the right viscosity for complete penetration into the mica layers. Our production team monitors this process with rheometers that track viscosity changes in real-time, ensuring batch-to-batch consistency that our customers rely on for their critical applications.
The actual impregnation happens in vacuum chambers that remove every trace of air from between the mica layers. I've watched our technicians adjust the vacuum levels multiple times during this process, responding to subtle changes in the material's behavior. They've developed this expertise over years of working with different mica grades and silicone formulations. After impregnation, we use a gradual curing process that slowly builds the cross-linking between silicone molecules without creating internal stresses that could lead to premature failure.
We've incorporated some unusual quality checks that our customers particularly appreciate. For instance, we randomly select samples from every batch and subject them to 10,000 flex cycles at both extreme cold (-60°C) and high heat (600°C) conditions. Our quality lab maintains detailed records of how each batch performs, and we're constantly refining our process based on what we learn from these tests. This hands-on approach to quality control ensures that when you specify our silicone bonded flexible mica plate, you're getting material that has been proven through rigorous real-world simulation rather than just standardized testing.
