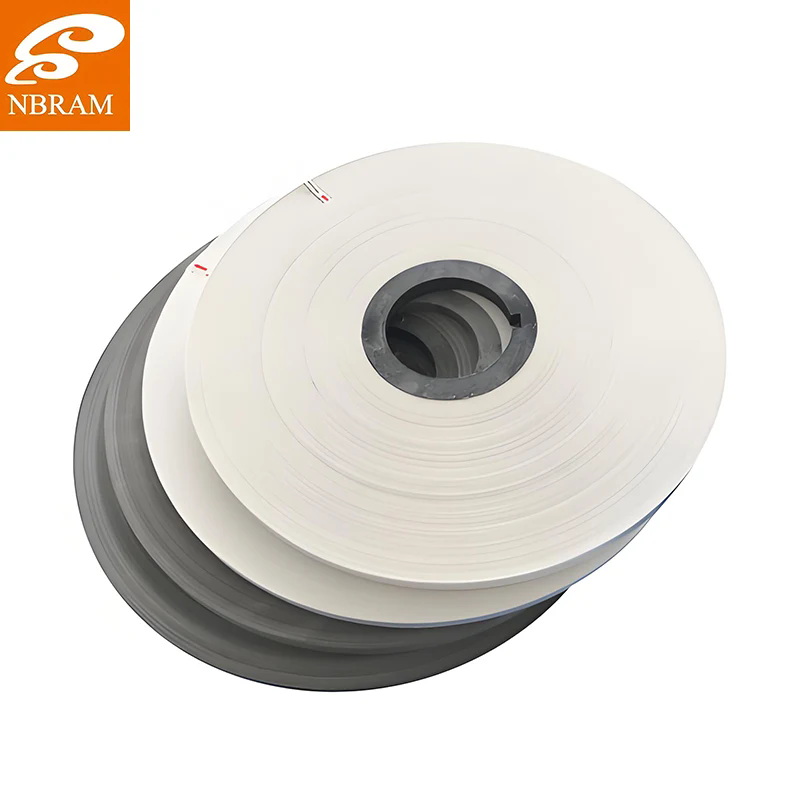

Mica Tape is a specialized insulating material made by bonding layers of high-quality mica paper with a heat-resistant adhesive and reinforcing it with glass cloth, polyester film, or other backing materials. It is primarily used in the electrical and electronic industries for its outstanding dielectric strength, high thermal resistance, and exceptional flame-retardant performance. This makes Mica Tape indispensable in the production of fire-resistant cables, transformers, motors, and generators where consistent insulation performance under extreme temperatures is crucial.
Mica itself is a naturally occurring silicate mineral with a layered structure, giving it excellent flexibility and thermal stability. When transformed into tape form, it provides both mechanical and electrical insulation in applications that require endurance against temperatures exceeding 1000°C.
Mica Tape’s structure is designed to maintain insulation integrity even under conditions of combustion or electrical fault. In modern manufacturing, it has become the go-to solution for cable manufacturers, particularly in the production of fire-resistant power and control cables used in high-rise buildings, subways, tunnels, and energy plants.
Key Product Parameters of Mica Tape:
| Parameter | Specification |
|---|---|
| Base Material | Phlogopite Mica / Muscovite Mica |
| Binder | Silicone Resin / Epoxy Resin |
| Reinforcement Layer | Glass Cloth / Polyester Film |
| Thickness Range | 0.08mm – 0.20mm |
| Width Range | 10mm – 1000mm |
| Thermal Resistance | Up to 1000°C (short-term exposure) |
| Dielectric Strength | >20 kV/mm |
| Tensile Strength | ≥120 N/10mm |
| Combustion Resistance | Non-flammable, smoke-free |
| Application Areas | Fire-resistant cables, transformers, motors, and generators |
These parameters highlight how Mica Tape balances high insulation performance with excellent durability, enabling it to perform reliably under both mechanical stress and elevated temperatures.
Mica Tape stands out among insulation materials because of its unique combination of electrical, thermal, and mechanical advantages. Unlike standard polymer or paper-based insulations that degrade or melt under high temperatures, Mica Tape remains stable and non-conductive even in direct flame exposure.
1. Exceptional Heat Resistance:
Mica Tape maintains its structure and insulating properties at temperatures exceeding 1000°C, ensuring that circuits remain isolated and safe even during fire events. This makes it particularly suitable for safety-critical systems, including emergency lighting and fire-alarm cables.
2. Excellent Electrical Insulation:
The dielectric strength of Mica Tape surpasses most synthetic materials, providing superior protection against electrical breakdown. This ensures reliable performance in high-voltage applications such as transformers and generators.
3. Mechanical Strength and Flexibility:
Despite its high heat resistance, Mica Tape is flexible and easy to apply during cable wrapping or coil winding processes. The reinforcement layer, typically made of glass fiber, provides tensile strength and stability during production.
4. Fireproof and Flame-Retardant:
In case of fire, Mica Tape prevents the spread of flames and minimizes smoke generation. This property significantly enhances safety in public infrastructure and industrial installations.
5. Long-Term Durability:
Mica Tape does not age easily and can maintain its insulation integrity for many years under both thermal and electrical stress. It resists moisture, chemicals, and mechanical wear, contributing to the long operational life of electrical systems.
Why It Matters:
The importance of Mica Tape goes beyond just insulation. It ensures system reliability, safety, and regulatory compliance. Many international safety standards, such as IEC 60331 and BS 6387, require the use of fire-resistant materials like Mica Tape for compliance.
The versatility of Mica Tape allows it to be used across multiple sectors that demand heat and electrical resistance. Its main applications include:
1. Fire-Resistant Cables:
Mica Tape is wrapped around conductors to provide a fire barrier. Even when the cable sheath burns away, the mica layer continues to insulate, maintaining circuit integrity during fire exposure.
2. Electric Motors and Generators:
Used for coil insulation, slot lining, and turn-to-turn insulation, Mica Tape ensures that electrical components withstand high operating temperatures and mechanical vibration.
3. Transformers:
In both dry-type and oil-immersed transformers, Mica Tape acts as a primary insulation material to prevent electrical discharges and thermal degradation.
4. Aerospace and Defense Applications:
Due to its superior flame and heat resistance, Mica Tape is used in specialized cables and insulation systems for aerospace, defense, and naval applications.
5. Household and Industrial Appliances:
In heaters, ovens, and high-temperature sensors, Mica Tape provides an efficient thermal and electrical insulation layer, ensuring performance and safety.
How It Works:
During cable manufacturing, Mica Tape is spiral-wrapped around the conductor with a slight overlap to create a continuous mica barrier. The outer layers of glass cloth or polyester film enhance the mechanical properties, while the mica layer provides the core insulation and flame barrier. When exposed to fire, the tape does not melt or produce toxic smoke but instead forms a stable mica layer that isolates the electrical circuit from heat and flame.
With increasing demand for fire safety, energy efficiency, and high-performance electrical systems, Mica Tape technology continues to evolve. Future trends are shaped by advancements in material science, manufacturing precision, and environmental standards.
1. Development of Eco-Friendly Binders:
Manufacturers are developing halogen-free, low-smoke adhesives to enhance environmental compatibility while maintaining high bonding strength and heat resistance.
2. Improved Flexibility and Thinness:
The industry is focusing on producing thinner yet stronger Mica Tapes to meet modern lightweight and compact cable designs, especially in electric vehicles and smart infrastructure.
3. Integration with Smart Cable Systems:
As power networks adopt digital monitoring, Mica Tape is being incorporated into smart cable systems for continuous temperature and insulation health monitoring.
4. Expansion in Renewable Energy Applications:
Wind turbines, solar inverters, and energy storage systems increasingly require Mica Tape due to their high operating temperatures and electrical demands. Its durability and eco-resilience make it ideal for these next-generation applications.
5. Cost Optimization through Automation:
Modern production lines use automated wrapping and coating technologies to improve consistency and reduce material waste, ensuring uniform quality across large-scale manufacturing.
The continued innovation in Mica Tape materials and production methods ensures that it will remain a cornerstone in electrical insulation for decades, supporting the transition toward safer, smarter, and more energy-efficient systems.
Q1: What are the differences between Phlogopite Mica Tape and Muscovite Mica Tape?
A1: Phlogopite Mica Tape provides superior heat resistance up to 1000°C and is more flexible, making it ideal for fire-resistant cable insulation. Muscovite Mica Tape offers excellent dielectric strength and is suitable for moderate temperature environments up to around 700°C. The choice depends on the required thermal performance and application type.
Q2: Can Mica Tape be used in oil-immersed transformers or wet environments?
A2: Yes. Mica Tape has excellent chemical stability and moisture resistance, making it suitable for both dry and oil-immersed transformer applications. When properly cured and sealed, it maintains insulation performance without delamination or degradation even in humid or oil-rich conditions.
Mica Tape continues to be a cornerstone of modern electrical insulation technology. Its combination of high thermal stability, flame resistance, and excellent electrical insulation makes it indispensable for industries that prioritize safety and reliability. As the world moves toward higher standards of energy efficiency and fire safety, the demand for durable insulation materials like Mica Tape will only grow.
With ongoing innovations in eco-friendly binders, advanced reinforcement layers, and automated manufacturing, Mica Tape will remain a critical material in next-generation cable and electrical systems.
NBRAM is dedicated to providing high-performance Mica Tape solutions that meet international standards and cater to a wide range of applications across industries. For detailed specifications, technical support, or customized insulation solutions, contact us today to discover how NBRAM can help enhance your electrical safety and performance.
