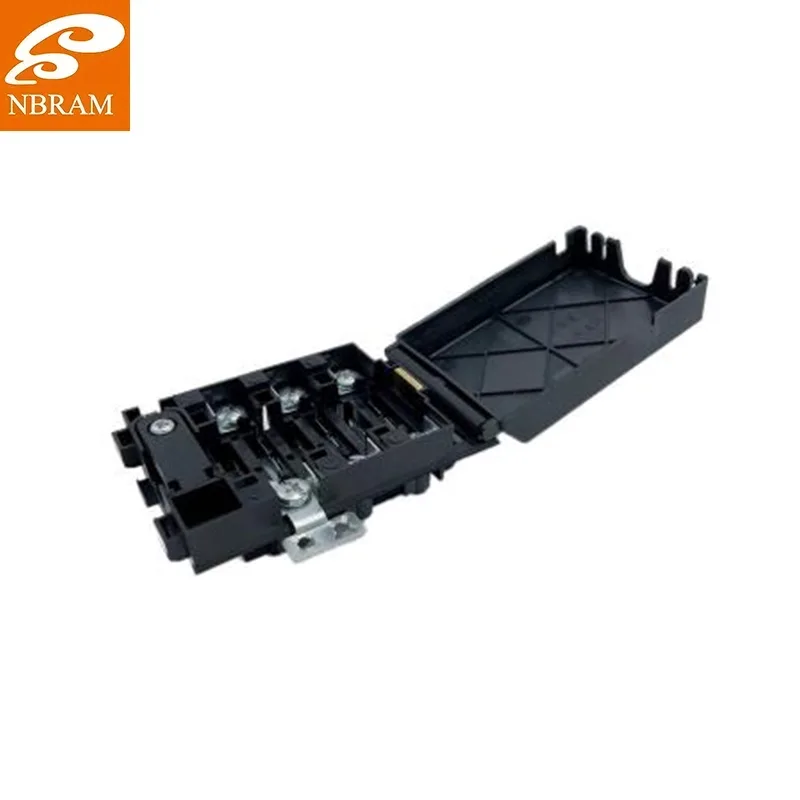

TB-02 oven TERMINAL BOX could meet the special needs of customers on technical details. For example adjustment of test equipment or change of material to meet the needs. NBRAM succeed to develop Media type of terminal box and helped with clients to make improvement.
Chinese Leader of cooker & heater components.
Start component business from Year 2000, set up our own factories since .
Focus on supply chain service.
Dedicated to white goods components business.
From 2010,SUNNER started to produce electric parts for gas cooker and electric ovens, terminal box is the first product as NBRAM’s success.
NBRAM production capacity for terminal box is 500,000pcs per month, product certificated by TUV.
NBRAM technology and quality department works always for lowering cost and improvement of the quality.
|
Type designation |
Type of terminals |
Rated connecting capacity | Cross section of conductor |
Nature of supply |
Rated insulation voltage |
Rated current |
spec. Tightening torque |
| TB-02 |
Screw terminal and male tab |
1*1.5m㎡ for screw-type clamping unit 2*6.3x00.8mm for male tabs |
1*0.75..1.5m㎡ for screw type clamping unit |
AC | 400V | 16A |
1.2Nm(for screw) |
| TB-01 |
1*6m㎡ for screw-type clamping unit 2*6.3x00.8mm for male tabs |
1*2.5..6.0m㎡ for screw- type clamping unit |
AC | 400V | 40A |
2.0Nm(for screw) |
NBRAM TB-02 oven TERMINAL BOX TEST REQUIREMENT
Terminal box could pass below tests:
1.Fall down test, 30 times from 30cm height, with no break
2.The ball pressure test
3.24H high temperature test in 200°C oven with no break
4.750°C or 850°C low wire test with no break
5.Tensile tests
6.life test
7.RoHs
Also NBRAM engineer team has the ability to develop new type of terminal box according to customers’ technical drawings or samples.
NBRAM always believes that improvement could keep the technical team learning and making progress,unless there is no future for a factory，and we will keep this philosophy to learn from our customers and learn from our competitors， more challenge, more success.
