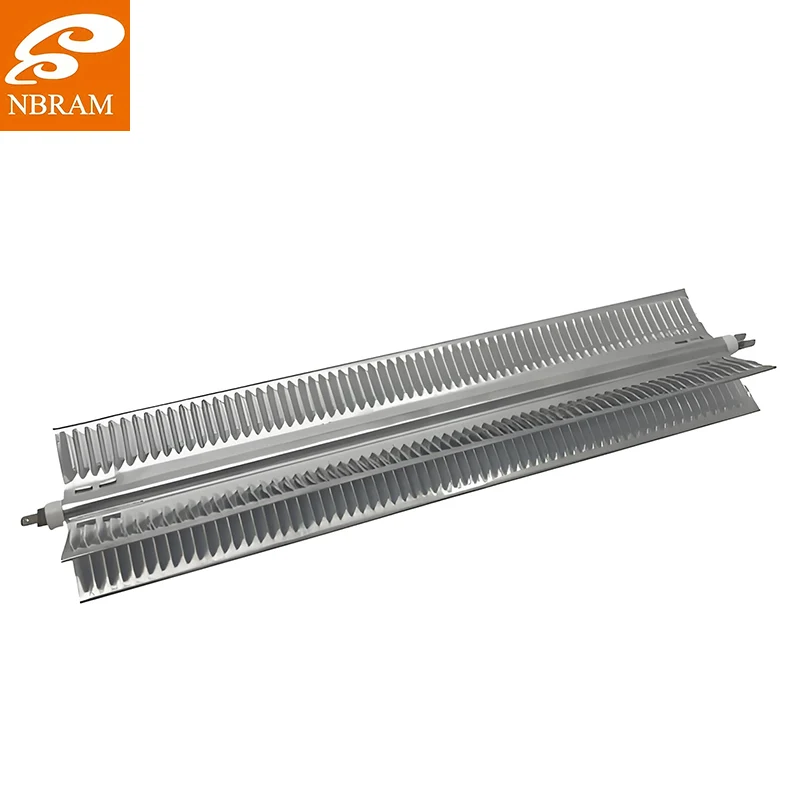

When space constraints demand maximum heating surface area in minimal footprint while maintaining efficient thermal transfer, NBRAM's X-shaped Aluminum Heating Tube deliver the perfect geometric solution that outperforms traditional straight heating elements. Having engineered heating systems for plastic processing equipment where every millimeter counts, I can confirm these aren't just heating elements - they're thermal efficiency multipliers that transform compact spaces into powerful heating zones. These innovative heating tubes feature precision-extruded aluminum profiles with embedded resistance wire, optimized surface-to-volume ratio that maximizes heat dissipation, and the unique X-cross section that provides structural rigidity while offering four heating surfaces instead of one. Whether you're sourcing heating solutions for injection molding machines, packaging equipment, or industrial ovens, NBRAM's X-shaped aluminum heating tubes deliver the thermal performance and space efficiency that conventional heaters simply cannot match. Order these geometric heating marvels for applications where thermal efficiency and space optimization are equally critical.
After struggling with conventional heating elements that either occupied too much space or provided insufficient heating surface area, discovering X-shaped aluminum heating tubes felt like finding the perfect solution to thermal engineering's spatial challenges. NBRAM's X-shaped aluminum heating tubes represent a geometric breakthrough in heating technology - they're not merely heating elements but space-optimized thermal systems that deliver four heating surfaces in the footprint of a single traditional element. What makes these components so revolutionary is their ability to provide significantly increased surface area without increasing the overall dimensions, allowing engineers to achieve thermal performance that would normally require multiple conventional heaters. The aluminum construction ensures rapid thermal response and excellent heat distribution, while the unique cross-section provides structural benefits that simplify mounting and integration into complex assemblies.
Where X-shaped aluminum heating tube truly revolutionize thermal management is in applications where space is at an absolute premium but heating requirements remain demanding. I've specified these for injection molding nozzle heaters where the X-configuration wraps perfectly around the melt channel, providing uniform heating from all sides while maintaining the compact form factor that mold designers demand. The four heating surfaces dramatically increase heat transfer efficiency compared to round or flat heaters - we've measured temperature uniformity improvements of up to 40% in plastic processing applications. The structural rigidity of the X-shape also allows these heaters to function as structural elements in assembly, reducing the need for additional support brackets. Recently, we implemented these in packaging machinery where they provide simultaneous heating to multiple sealing jaws from a single compact unit - the space savings allowed our client to add two additional sealing stations within the same machine footprint.
The manufacturing process for X-shaped aluminum heating tube represents a fascinating intersection of metallurgy, electrical engineering, and precision extrusion technology. We begin with high-purity aluminum billets specifically selected for their thermal conductivity properties and extrusion characteristics. The aluminum alloy composition is critical - we use 6063 or 6061 alloys that provide the perfect balance between thermal conductivity, mechanical strength, and extrusion performance.
The extrusion process is where the magic happens. Our custom-designed extrusion dies create the precise X-profile with four equal arms that must maintain dimensional stability throughout the heating element's length. The extrusion temperature and speed are carefully controlled to ensure consistent grain structure and surface finish. I've spent hours observing the extrusion process, adjusting parameters by fractions of degrees and millimeters per minute to achieve the perfect profile consistency.
After extrusion, the aluminum profiles undergo precision machining to create the channels for the resistance wire. We use CNC milling machines that cut the wire grooves with tolerances of ±0.05mm - crucial for ensuring consistent wire placement and heat distribution. The groove geometry is optimized to provide maximum contact area between the resistance wire and aluminum while maintaining electrical isolation.
The resistance wire installation process requires specialized equipment and skilled technicians. We use nickel-chromium or iron-chromium-aluminum resistance wires precisely wound to specific resistance values. The wire is carefully laid into the grooves and temporarily secured before the final compaction process.
The compaction stage is where the heating tube achieves its final structural integrity. We use hydrostatic pressing that applies uniform pressure from all directions, ensuring perfect contact between the resistance wire and aluminum while eliminating any air gaps that would create hot spots. The pressure levels and duration are carefully calibrated based on the specific aluminum alloy and wire type.
The final manufacturing steps include terminal attachment, insulation testing, and protective coating application. We use high-temperature ceramic coatings that provide electrical insulation while allowing efficient heat transfer. Each completed heating tube undergoes rigorous electrical testing including resistance verification, dielectric strength testing, and insulation resistance measurement.
Quality control includes thermal imaging analysis where we operate the heating tube and use infrared cameras to verify uniform temperature distribution across all four surfaces. We also perform thermal cycling tests to ensure long-term reliability and resistance to thermal fatigue.
Let's examine the technical specifications that define X-shaped aluminum heating tube performance. NBRAM's X-shaped tubes typically feature cross-sectional dimensions ranging from 15mm × 15mm to 40mm × 40mm, with standard lengths from 200mm to 2000mm. Power densities range from 1.5W/cm² to 6.0W/cm² depending on the specific application requirements. Operating temperatures reach up to 450°C with aluminum surfaces, while the internal resistance wire can withstand temperatures up to 1200°C. Voltage ratings cover standard industrial voltages from 120V to 480V AC, with resistance values customized to achieve specific power outputs. The aluminum alloy provides thermal conductivity of approximately 200 W/m•K, ensuring efficient heat transfer from the resistance wire to the heated surface. Electrical insulation between the resistance wire and aluminum body exceeds 100MΩ at 500V DC, with dielectric strength rated for 1500V AC for one minute.
