Introduction
In the electrical industry, the demand for high-quality insulation materials has grown exponentially due to increasing standards in transformer and motor performance. At Ningbo Ram Electric Material Co., Ltd., we focus on producing superior Mica Sheets that meet rigorous industrial standards. Our Mica Sheet products are widely used in transformer windings, electric motors, and other critical components where insulation, heat resistance, and electrical reliability are paramount. In this article, we will explore why Mica Sheets are essential, their technical advantages, detailed specifications, and practical applications in modern electrical manufacturing. Our expertise allows us to provide consistent quality and reliable solutions that extend the life of your electrical equipment.
What Are Mica Sheets and Their Core Properties?
Mica Sheets are an essential material in the electrical industry, particularly for transformers, motors, and other high-voltage equipment. They are derived from natural mica minerals, which are crystalline silicates known for their exceptional electrical insulation properties. Our Mica Sheets at Ningbo Ram Electric Material Co., Ltd. are carefully manufactured to meet the highest industrial standards, ensuring uniformity, reliability, and long-term performance. These sheets are widely applied where high dielectric strength, thermal stability, and mechanical durability are required.
The core properties of Mica Sheets make them uniquely suitable for electrical applications. Let’s explore these properties in detail:
1. High Dielectric Strength
-
Our Mica Sheets provide dielectric strength up to 20 kV/mm, which allows them to withstand high-voltage environments without breakdown.
-
This property is crucial in transformer windings and motor insulation, where electrical stress is significant and constant.
-
The sheets maintain consistent electrical properties across batches, ensuring predictable performance in large-scale manufacturing.
-
Dielectric strength is achieved through high-purity mica selection and precise manufacturing techniques, which reduce impurities and voids that could compromise insulation.
2. Thermal Stability
-
Our Mica Sheets can resist temperatures up to 500°C, making them ideal for motors and transformers that generate significant heat.
-
The sheets retain structural integrity and dielectric properties under prolonged exposure to high temperatures.
-
Thermal stability reduces the risk of insulation breakdown due to overheating, which is a common cause of transformer and motor failures.
-
High thermal resistance also allows equipment to operate efficiently under extreme environmental conditions.
3. Mechanical Strength and Flexibility
-
The tensile strength of our Mica Sheets exceeds 40 MPa, making them resistant to tearing and cracking during handling and assembly.
-
Flexibility allows easy integration into transformer windings, motor laminations, and other complex geometries.
-
High mechanical durability ensures that insulation layers remain intact during vibration, impact, and thermal expansion.
-
These properties contribute to the long-term reliability of electrical equipment.
4. Moisture Resistance
-
Our sheets exhibit minimal moisture absorption (≤0.2%), which prevents dielectric degradation in humid conditions.
-
Moisture resistance ensures stable insulation performance and reduces the risk of short circuits.
-
This property is particularly important for outdoor transformers or motors operating in high-humidity environments.
-
Moisture-resistant mica sheets extend the lifespan of electrical components by maintaining dielectric stability.
5. Chemical Resistance
-
The sheets are highly resistant to oils, solvents, and industrial chemicals, ensuring insulation integrity in harsh manufacturing environments.
-
Chemical resistance prevents corrosion of both the mica sheets and the surrounding metallic components.
-
This property allows our sheets to maintain performance even when exposed to cleaning agents or lubricants.
-
Our factory applies quality processes that guarantee chemical stability for long-term use.
6. Precision and Uniformity
-
Our Mica Sheets are produced with consistent thickness, ensuring uniform insulation across transformer windings and motor assemblies.
-
Precision-controlled dimensions reduce the risk of localized electrical stress, which can lead to early failure.
-
Uniformity is critical in high-volume industrial applications where each sheet must perform reliably.
-
Our factory employs strict quality control measures to ensure every batch meets stringent specifications.
In conclusion, Mica Sheets combine high dielectric strength, thermal resistance, mechanical durability, moisture and chemical resistance, and precise dimensions. These properties make them indispensable for high-performance transformers and motors. Our factory ensures every sheet meets these standards, providing a reliable foundation for electrical insulation.
Why Are Mica Sheets Critical in Transformer and Motor Manufacturing?
The manufacturing of transformers and motors requires materials that can reliably withstand extreme electrical, thermal, and mechanical stress. Mica Sheets play a pivotal role in ensuring equipment longevity, efficiency, and safety. At Ningbo Ram Electric Material Co., Ltd., we produce mica sheets that meet rigorous industrial requirements, allowing manufacturers to achieve superior performance in their products. Let’s examine the key reasons why mica sheets are critical:
1. Electrical Insulation and Safety
-
Our Mica Sheets provide a high dielectric barrier, preventing electrical leakage and short circuits.
-
They protect transformer windings and motor coils from voltage spikes and insulation breakdown.
-
High insulation reliability reduces operational risks and ensures worker safety.
-
By maintaining consistent electrical performance, our mica sheets minimize downtime due to insulation failures.
2. Thermal Management
-
Transformers and motors generate heat during operation, and inadequate insulation can lead to equipment damage.
-
Our mica sheets tolerate temperatures up to 500°C, ensuring that insulation does not degrade under prolonged thermal stress.
-
Stable thermal performance contributes to overall system efficiency, reducing energy losses.
-
High-temperature resistance also prevents early failure of motor windings and transformer cores.
3. Mechanical Integrity During Assembly
-
During winding and assembly, insulation materials must withstand physical handling without tearing or deformation.
-
Our sheets possess high tensile strength and flexibility, allowing for seamless integration into complex winding geometries.
-
Mechanical robustness ensures insulation layers remain intact under vibration, movement, and operational stresses.
-
This durability minimizes the risk of insulation failure during the equipment’s lifecycle.
4. Moisture and Environmental Resistance
-
Moisture absorption can compromise insulation performance, leading to short circuits or electrical breakdown.
-
Our Mica Sheets are moisture-resistant, maintaining dielectric integrity in humid environments.
-
Chemical resistance protects against industrial solvents, oils, and cleaning agents that may come into contact with electrical components.
-
These properties make our sheets suitable for both indoor and outdoor electrical applications.
5. Enhanced Efficiency and Longevity
-
By minimizing energy losses through superior insulation, mica sheets contribute to improved transformer and motor efficiency.
-
Long-term thermal and electrical stability reduces the frequency of maintenance and repairs.
-
Extended operational life of equipment reduces total cost of ownership for manufacturers and end users.
-
Consistent quality from our factory ensures performance remains reliable over thousands of operational hours.
6. Regulatory and Industry Standards Compliance
-
Our Mica Sheets comply with ISO 9001, CE, and other international standards, ensuring suitability for global electrical manufacturing.
-
High-quality insulation materials are mandatory for meeting safety, efficiency, and environmental requirements.
-
Compliance with standards also facilitates certification and approval of finished transformers and motors.
-
Our factory’s quality assurance processes guarantee every sheet adheres to these stringent standards.
In essence, mica sheets are indispensable because they ensure electrical safety, thermal stability, mechanical integrity, and regulatory compliance. They directly affect transformer and motor reliability, efficiency, and service life, making them critical components in high-performance electrical equipment.
At Ningbo Ram Electric Material Co., Ltd., we understand that insulation is fundamental to electrical performance. Our Mica Sheets are designed not only to meet industrial specifications but also to enhance operational safety and efficiency. By integrating advanced material selection and precise manufacturing techniques, our sheets provide unmatched performance in transformers, motors, and other high-voltage equipment.
1. Superior Dielectric Strength
-
Our mica sheets provide high voltage insulation, reducing the risk of electrical arcing and short circuits.
-
The dielectric properties are maintained under varying temperatures and operational stresses.
-
Enhanced dielectric strength improves transformer and motor reliability, especially in high-voltage applications.
-
Uniform thickness ensures consistent insulation performance across all components.
2. Thermal Resistance for High-Temperature Operation
-
Transformers and motors generate significant heat, which can degrade insulation if materials are inadequate.
-
Our Mica Sheets resist temperatures up to 500°C without compromising mechanical or electrical properties.
-
Thermal stability reduces the risk of insulation failure, protecting windings, cores, and other components.
-
High-temperature performance ensures equipment operates efficiently even under continuous heavy load conditions.
3. Mechanical Durability During Manufacturing
-
During transformer winding or motor assembly, mica sheets must remain intact and flexible.
-
Our sheets’ tensile strength and flexibility allow easy handling and shaping without tearing.
-
Maintaining mechanical integrity ensures the insulation remains effective throughout the equipment lifecycle.
-
Durable mica sheets also reduce manufacturing waste and improve production efficiency.
4. Moisture and Chemical Resistance
-
Our sheets are highly resistant to moisture, preventing electrical degradation in humid or wet environments.
-
Chemical resistance ensures protection against oils, solvents, and industrial cleaning agents.
-
These properties reduce maintenance needs and extend the service life of transformers and motors.
-
Reliable performance in harsh environments increases operational safety and reduces downtime.
5. Precision and Consistency for Reliable Performance
-
Uniform thickness and precise dimensions minimize electrical stress points in windings.
-
Consistent quality ensures repeatable performance in large-scale manufacturing.
-
Our factory uses advanced quality control methods to monitor dielectric strength, tensile strength, and moisture resistance.
-
Precision manufacturing allows us to meet the unique specifications of various transformer and motor designs.
6. Reduced Maintenance and Operational Costs
-
By providing long-lasting insulation, our mica sheets reduce the frequency of repairs and replacements.
-
High thermal and chemical resistance minimizes the risk of unexpected failures.
-
Enhanced reliability allows manufacturers to optimize operational efficiency and reduce energy losses.
-
Our factory ensures each sheet meets strict standards, guaranteeing consistent performance that lowers total equipment costs.
7. Contribution to Electrical Safety
-
Proper insulation is essential to prevent electrical hazards such as short circuits, arcing, and fire.
-
Our mica sheets maintain structural and electrical integrity even under extreme operational conditions.
-
By ensuring consistent dielectric performance, they protect both equipment and operators.
-
Enhanced safety also contributes to compliance with regulatory standards and industry best practices.
In summary, our Mica Sheets enhance electrical performance and safety by combining superior dielectric strength, thermal stability, mechanical durability, moisture and chemical resistance, and manufacturing precision. At Ningbo Ram Electric Material Co., Ltd., we prioritize consistent quality and reliability, ensuring that our sheets provide optimal insulation for transformers and motors in diverse industrial applications.

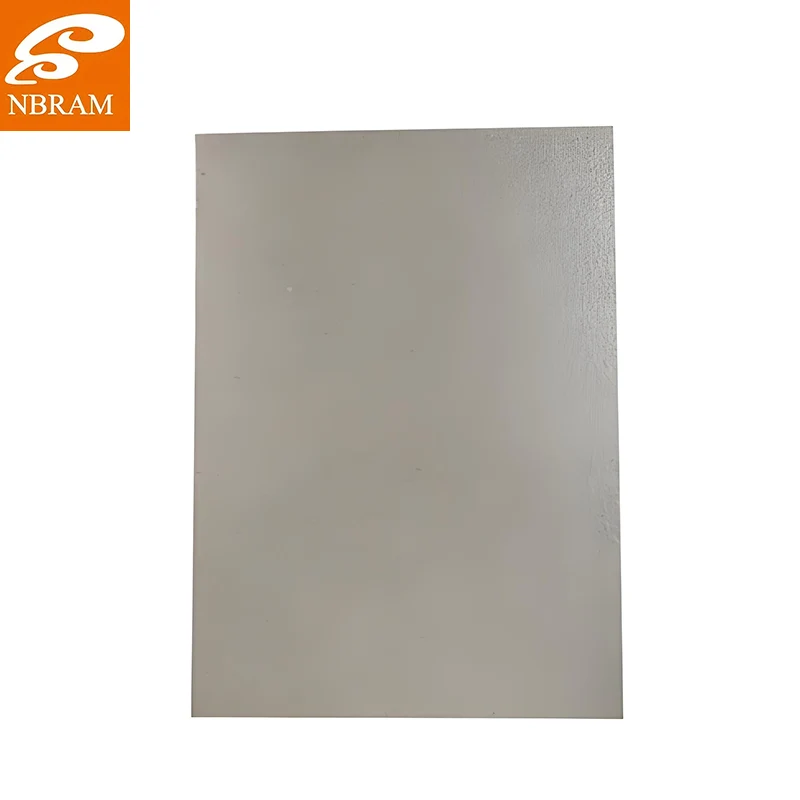

Mica Sheet Specifications and Product Parameters
Our Mica Sheets are manufactured to meet stringent industry standards. Below is a detailed overview of our product specifications, providing insight into the technical advantages and suitability for transformer and motor applications.
|
Product Name
|
Mica Sheet
|
|
Thickness Range
|
0.1 mm – 2.0 mm
|
|
Temperature Resistance
|
Up to 500°C
|
|
Dielectric Strength
|
≥ 20 kV/mm
|
|
Tensile Strength
|
≥ 40 MPa
|
|
Moisture Absorption
|
≤ 0.2%
|
|
Chemical Resistance
|
Excellent against oils, solvents, and cleaning agents
|
|
Dimensions
|
Customized sizes available
|
|
Surface Finish
|
Smooth, uniform, defect-free
|
|
Certification
|
ISO 9001, CE
|
Key Features of Our Mica Sheets
-
Customizable dimensions for different transformer and motor designs.
-
High purity mica ensures minimal dielectric loss.
-
Produced under strict quality control to guarantee consistent performance.
-
Our factory can provide large-volume production without compromising quality.
-
Reliable insulation material trusted by manufacturers worldwide.
Summary
Mica Sheets are indispensable in transformer and motor manufacturing due to their superior electrical insulation, thermal stability, and mechanical strength. At Ningbo Ram Electric Material Co., Ltd., our Mica Sheets are produced to meet the highest industry standards, ensuring long-term reliability and operational efficiency. Our factory emphasizes consistent quality, precise specifications, and durability, making our Mica Sheets the preferred choice for electrical manufacturers seeking performance and safety. Investing in our products guarantees reduced maintenance, extended equipment life, and optimized electrical performance.
Contact our team today to discuss your requirements and discover how our high-quality Mica Sheets can enhance your transformer and motor production.
FAQ
Q1: Why Are Mica Sheets Essential for Transformer and Motor Manufacturing?
Mica Sheets provide critical electrical insulation, thermal stability, and mechanical durability that ensure transformers and motors operate safely and efficiently.
Q2: How do Mica Sheets improve transformer efficiency?
By reducing electrical losses and maintaining consistent dielectric properties, Mica Sheets enhance the efficiency and energy performance of transformers.
Q3: What temperature ranges can Mica Sheets withstand?
Our Mica Sheets can tolerate temperatures up to 500°C without losing structural or electrical integrity, making them ideal for high-heat environments.
Q4: How does moisture resistance benefit motor performance?
Moisture-resistant Mica Sheets prevent insulation degradation in humid conditions, reducing the risk of short circuits and extending motor lifespan.
Q5: Why is mechanical strength important for Mica Sheets?
High tensile strength ensures the sheets do not tear or crack during installation and operation, preserving insulation reliability in transformers and motors.
Q6: How can Mica Sheets reduce maintenance costs?
By providing long-lasting insulation and resisting heat, moisture, and chemicals, Mica Sheets reduce equipment failure rates and the frequency of repairs.
Q7: What role does consistent thickness play in electrical applications?
Uniform thickness guarantees reliable insulation, preventing uneven electrical stress and enhancing the overall safety of transformer and motor systems.
Q8: How does our factory ensure the quality of Mica Sheets?
Our factory employs advanced manufacturing and quality control processes, ensuring that each Mica Sheet meets precise electrical, thermal, and mechanical standards for consistent performance.
